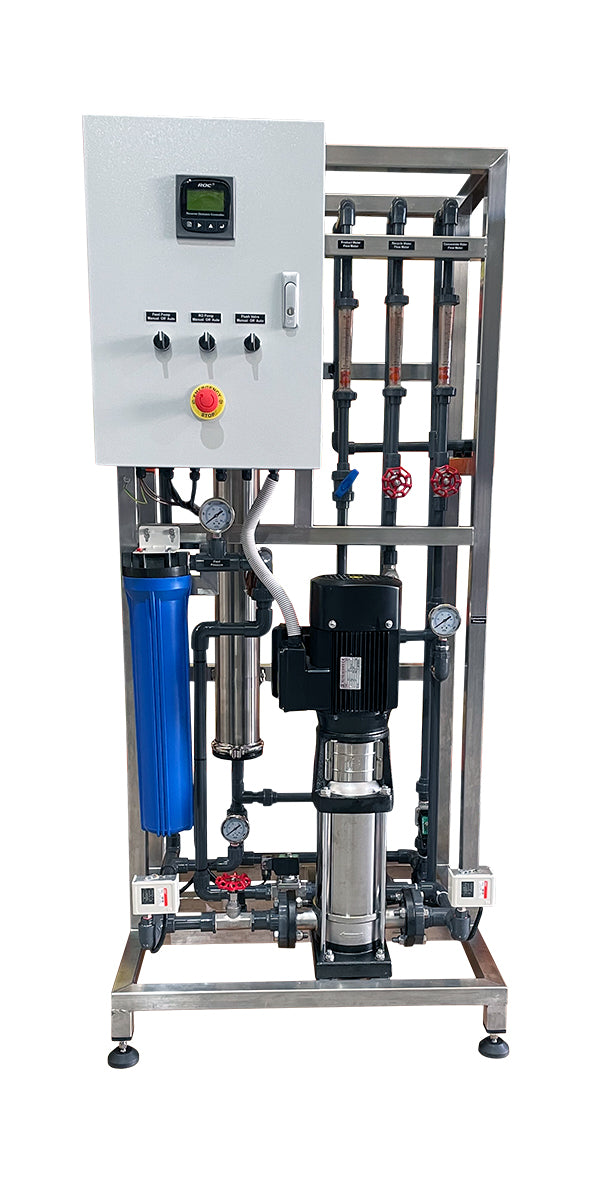

WERO Industrial Reverse Osmosis Water Filter 1500GPD – 19000GPD Brackish Water Systems

WERO Industrial Reverse Osmosis Water Filter 1500GPD – 12000GPD Brackish Water Systems

The WERO range of reverse osmosis machines have been designed in Australia and is perfect for all applications where pure water is required. Designed with standard features that include stainless steel frames, Australian standard compliant electrical system, Danfos pressure switches, Imperial sch80 PVC pipework, stainless steel pumps and housings. The WERO range has been built with ease of operation in mind

RO performance will vary depending on raw water quality and temperature, Please contact us with your water analysis results so we can size the correct size system for your needs prior to purchasing a unit to ensure the system will perform according to specifications

System Options

• WERO 4-1 (1500 GPD) (250L/hr) [ These are special order items 2-3 weeks lead time ]
• WERO 4-2 (3000 GPD) (500L/hr)  [ These are special order items 2-3 weeks lead time ]
• WERO 4-4 (6000 GPD) (1000L/hr) [ These are special order items 2-3 weeks lead time ]
• WERO 4-6 (9000 GPD) (1500L/hr) [ These are special order items 2-3 weeks lead time ]
• WERO 4-8 (12000 GPD) (2000L/hr) [ These are special order items 2-3 weeks lead time ]

Key Features

• 4040 Membrane Housings
• 304 Stainless Steel Frame, Pump, SS316 Optional**
• Schedule 80 uPVC pipes
• 304 Stainless housing standard, SS316 or FRP Membrane housing optional**
• WERO ROC Controller & Conductivity Meter
• 240v AC Supply
• Main Isolation Switch – Interlock On Door
• Barrel Unions Pre And Post Components
• Adjustable Levelling Feet
• Flow Adjustable Needle Valves
• Float Level Control Option Standard
• Manual Override Switches In Control Panel
• Low Pressure Feed Safety Switch
• RO Flush and Recovery Adjustable
• Recirculation Option Standard
• CIP Connections

Specifications

WERO 4-1

Flow Rate  - 250L Per Hour

Temperature – 20 Deg

Operational Pressure  - 1000 kPA

Water Quality* - >2000TDS

Salt Rejection – up to 98%

Dimensions - 700mm(W) x 600mm (D) x 1640(H)

Hydraulic connections -3/4’ inlet PVC x 1/2” outlet PVC x 1/2” Drain PVC

Power consumption - .75 KW

Voltage - 240V AC

Conductivity Monitoring - Feed water and post membranes

Pre Treatment connections - Interface paused during backwash and regeneration cycles

Alarm Notification - Low Pressure feed. Low feed tank level. High conductivity. Permeate tank high level

1 x 4040 Membrane Housing

20 x 2.5” Pre-Filter Housing

WERO 4-2

Flow Rate  - 500L Per Hour

Temperature – 20 Deg

Operational Pressure  - 1000 kPA

Water Quality* - >2000TDS

Salt Rejection – up to 98%

Dimensions - 700mm(W) x 600mm (D) x 1640(H)

Hydraulic connections -3/4’ inlet PVC x 1/2” outlet PVC x 1/2” Drain PVC

Power consumption – 1.5 KW

Voltage - 240V AC

Conductivity Monitoring - Feed water and post membranes

Pre Treatment connections - Interface paused during backwash and regeneration cycles

Alarm Notification - Low Pressure feed. Low feed tank level. High conductivity. Permeate tank high level

2 x 4040 Membrane Housing

20 x 2.5” Pre-Filter Housing

WERO 4-4

Flow Rate  - 1000L Per Hour

Temperature – 20 Deg

Operational Pressure  - 1000 kPA

Water Quality* - >2000TDS

Salt Rejection – up to 98%

Dimensions - 900mm(W) x 600mm (D) x 1640(H)

Hydraulic connections -3/4’ inlet PVC x 1/2” outlet PVC x 1/2” Drain PVC

Power consumption – 2.0 KW

Voltage - 240V AC

Conductivity Monitoring - Feed water and post membranes

Pre Treatment connections - Interface paused during backwash and regeneration cycles

Alarm Notification - Low Pressure feed. Low feed tank level. High conductivity. Permeate tank high level

4 x 4040 Membrane Housing

20 x 4.5” Pre-Filter Housing



WERO 4-6

Flow Rate  - 1500L Per Hour

Temperature – 20 Deg

Operational Pressure  - 1000 kPA

Water Quality* - >2000TDS

Salt Rejection – up to 98%

Dimensions – 900mm(W) x 800mm (D) x 1640(H)

Hydraulic connections -3/4’ inlet PVC x 1/2” outlet PVC x 1/2” Drain PVC

Power consumption – 2.5 KW

Voltage - 240V AC

Conductivity Monitoring - Feed water and post membranes

Pre Treatment connections - Interface paused during backwash and regeneration cycles

Alarm Notification - Low Pressure feed. Low feed tank level. High conductivity. Permeate tank high level

6 x 4040 Membrane Housing

20 x 4.5” Pre-Filter Housing

WERO 4-8

Flow Rate  - 2000L Per Hour

Temperature – 20 Deg

Operational Pressure  - 1000 kPA

Water Quality* - >2000TDS

Salt Rejection – up to 98%

Dimensions - 1200mm(W) x 600mm (D) x 1640(H)

Hydraulic connections -1’ inlet PVC x 3/4” outlet PVC x 1/2” Drain PVC

Power consumption – 3.0 KW

Voltage - 240V AC

Conductivity Monitoring - Feed water and post membranes

Pre Treatment connections - Interface paused during backwash and regeneration cycles

Alarm Notification - Low Pressure feed. Low feed tank level. High conductivity. Permeate tank high level

8 x 4040 Membrane Housing

20 x 4.5” Pre-Filter Housing
