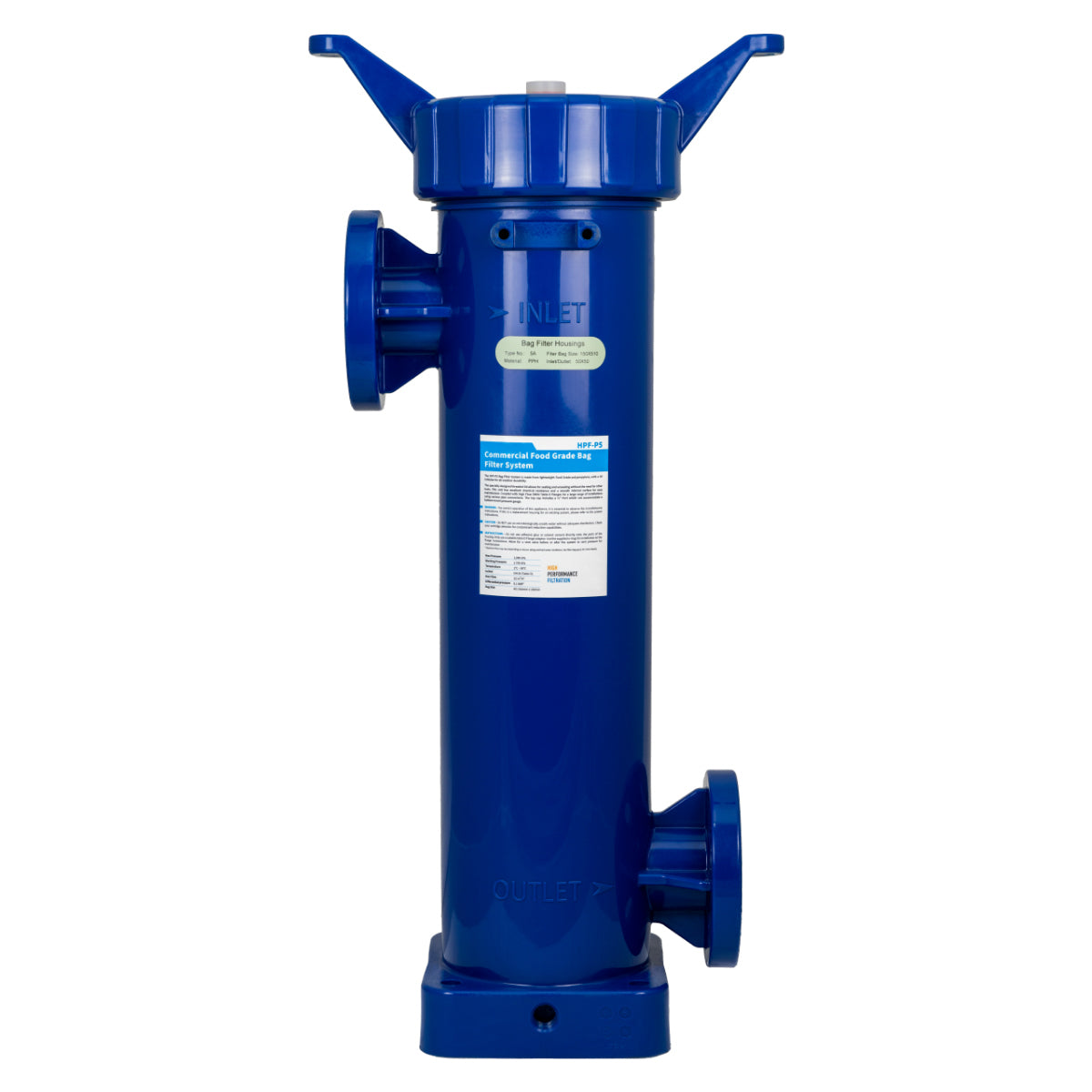

Commercial Food Grade Bag Filter System | Heavy Duty Alternative to the FSI X100 Convertible #5 Bag Filter Housing (HPF-P5)

The HPF-P5 Bag Filter Housing sets the benchmark for quality and durability in a variety of commercial and industrial applications. Crafted from robust food-grade polypropylene, this housing boasts an innovative DN50 (2") flange inlet/outlet configuration that enhances system strength and simplifies maintenance. The HPF-P5 Commercial Food Grade Bag Filter is the ideal heavy-duty solution as an alternative to the popular #5 FSI X100 bag filter housing. This rugged unit is engineered to withstand harsh conditions, with the capability to manage a wide array of chemicals and filter media. It can operate effectively within temperatures ranging from -1°C to 90°C and can handle high operating pressures of up to ≤ 700 kPa/7 Bar/101 PSI. Additionally, its weather-resistant design shields against UV exposure from sunlight.

The HPF-P5's interior features a smooth, non-porous surface for effortless cleaning and swift flushing. This housing is designed exclusively for bag filters and comes equipped with a sturdy, removable food-grade polypropylene homopolymer (PPH) retainer basket, making it perfect for those with diverse filtration requirements. The top-loading threaded lid and gasket facilitate quick and easy filter replacements without the need for downtime or complicated sump disassembly. No specialized opening tools are necessary, and the lid creates a secure seal to prevent fluid bypass.

The HPF-P5's robust base is suitable for both temporary (free-standing) and permanent installations, offering four pre-drilled holes for secure system placement. This system also includes a dedicated mounting point for a protection switch, a 1/2" PT female pressure gauge port, and a 1/2" PT female drain outlet to cater to various installation needs.

Technical Specifications

• Filter Type: Convertible
  • Bag Size: 5A or #5 (15cm x 51cm or 6" diameter by 20" length)
• Material: Food Grade, Chemical Resistant Polypropylene

• Internal design: Clean Wall
• Max Pressure: 800 kPa/8 Bar/116 PSI
• Working Pressure: ≤ 700 kpa/7 Bar/101 PSI
• Max Working Temperature: -1°C to 90°C
• Max Flow: 22m³/hour depending on micron rating + feedwater conditions
• Differential Pressure: 0.1 bar depending on micron rating + feedwater conditions
• Lid Closure: Thread Type
• Seal Type: Positive Seal
• Inlet & Outlet Flange: DN50 2"
• Pressure Gauge Port: 1/2" PT Female
• Drain Outlet Port: 1/2" PT Female
• Base Drill Holes: 4x 1.8cm

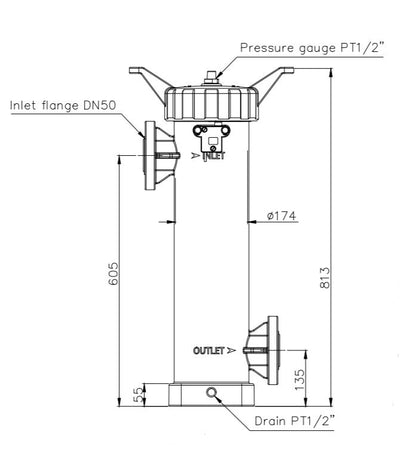

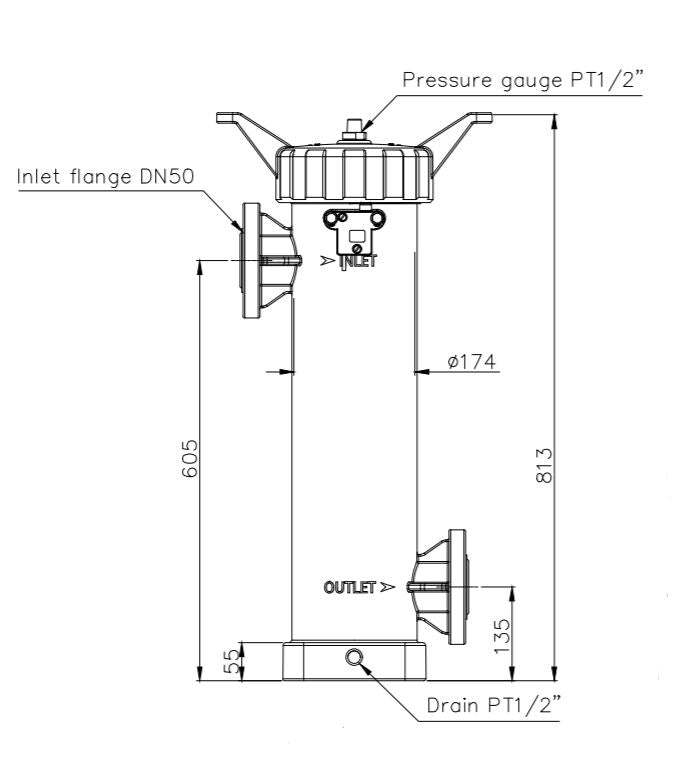

Dimensions

• Total Height: 81.8 cm
  • Height from Ground to Middle of Top DN50 Flange Inlet: 60.5cm

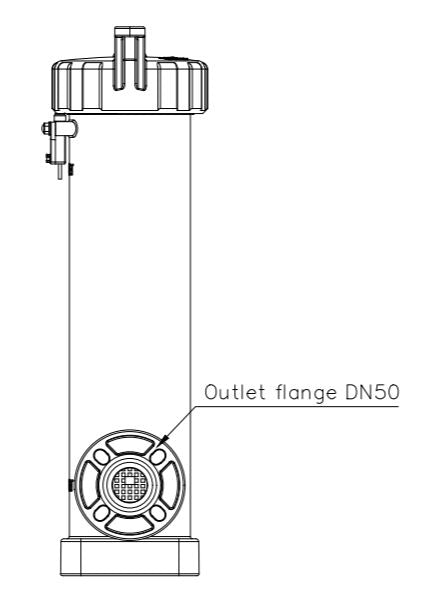

  • Height from Ground to Middle of Bottom DN50 Flange Outlet: 13.5cm

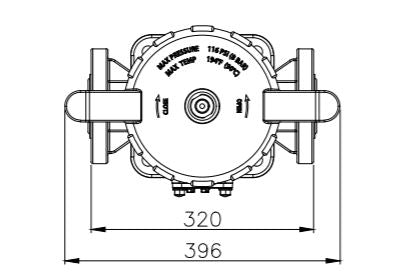

• Total Width: 39.6cm
  • Width from Outer Edge of Flanges: 32.4cm
  • Sump Outer Diameter: 18cm

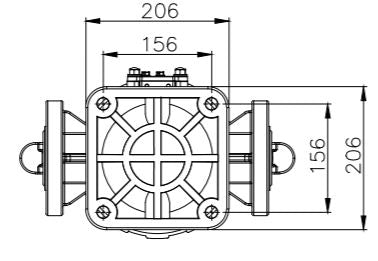

• Base Size:
  • 20.6cm by 20.6cm base
  • Height 5.5cm
