100 GPD Reverse Osmosis Water Filter System w/ Micro Computer, TDS Monitoring & Auto Flush | 15L/Hr or 375 Litres/Day (1-23LS)

The 100 Gallon Per Day Reverse Osmosis Water Filter System is a compact design that includes an inbuilt pressure pump to work on most water sources.

Our RO unit is widely used in commercial water treatment both in the Dental and Medical industries and is commonly used in the food and beverage industry for providing purified water as a base ingredient for alcohol distilling, brewing, and other like-processes. This system comes with your choice of Deionising or Calcite Alkalising post-filter.

The '0 TDS' Deionising post filter produces absolute pure water with no traces of dissolved minerals, similar to distilled water. This water is required for sensitive medical apparatuses including instrument sterilising. '0 TDS' water also has other uses, for example, in the Aquatics industry. Low EC and '0 TDS' water eliminates the need for expensive chemical treatment or bulk-bought water. It is perfect for water changeover in saltwater aquariums to avoid build-up in salt and mineral hardness.

With the filter combinations that we elect to use in this system, it has a wide array of uses and can work on low pressure bore water right up to town municipal water supplies. The cartridges used are standard-sized 10" x 2.5" cartridges and can be replaced easily.

**Please note that if you are treating a raw water source such as a bore, creek, dam, river, etc. there are specific inlet water requirements for a reverse osmosis system. If you are unsure about your water source please contact us BEFORE purchasing these systems with a comprehensive water analysis to ensure pre-treatment requirements are met. When treating a raw water source, please note that RO systems are prone to biofouling, you will need to pre-treat the water to ensure biofouling doesn't occur. Failure to do so will void your warranty and render the RO membrane un-salvageable.**

Inlet Water Quality Guidelines (Treated Mains Water)**

TDS < 2000 mg/L
Hardness < 120 mg/L
Chloride < 500 mg/L
Iron < 0.3 mg/L
Manganese < 0.1 mg/L

**IF YOU ARE TREATING ANY RAW WATER SOURCE THERE ARE ADDITIONAL PARAMETERS THAT NEED TO BE MET. PLEASE SEND US A COPY OF YOUR WATER ANALYSIS BEFORE PURCHASING!**

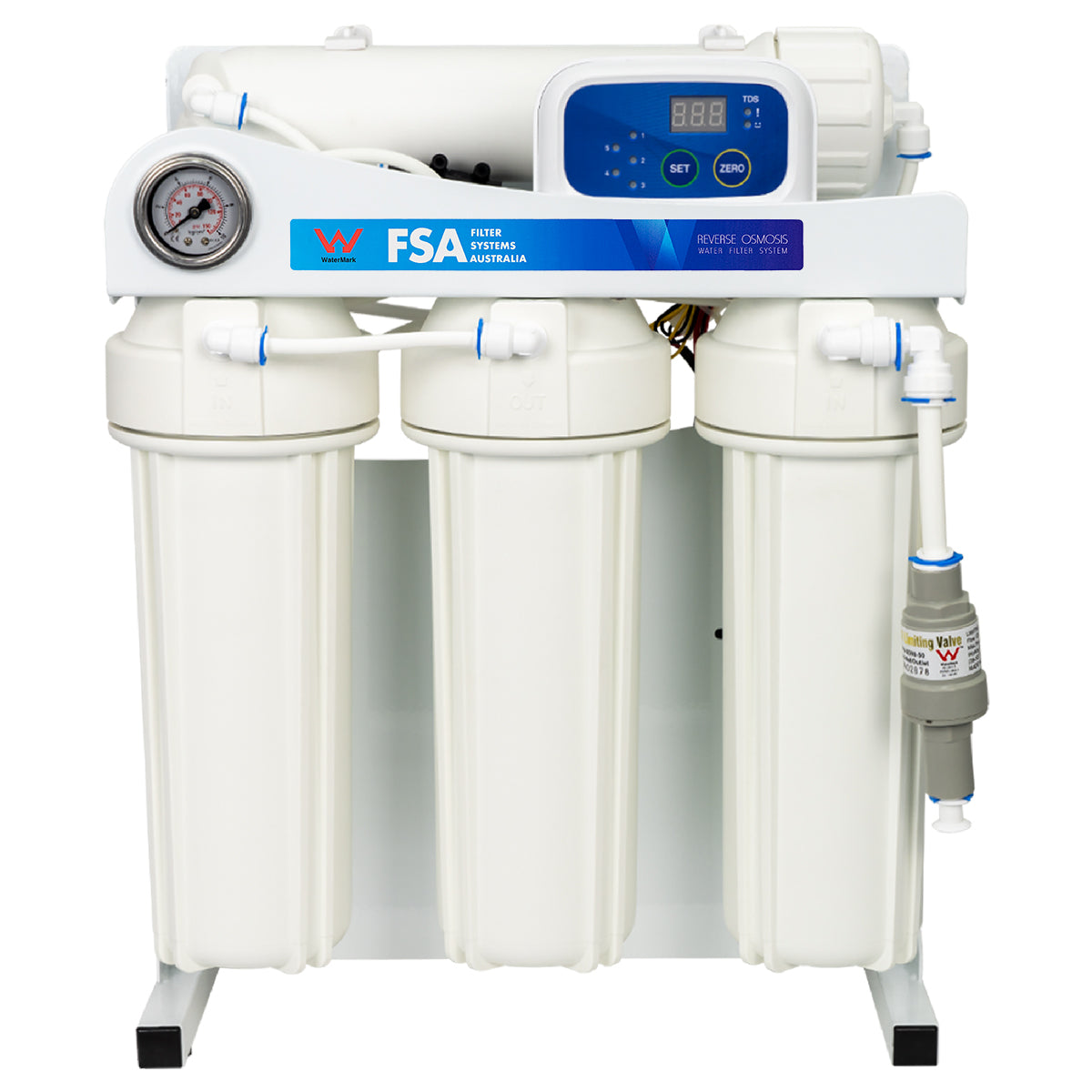

Micro-Computer Controller

The micro-computer controller is designed to take the guesswork out of using and maintaining your reverse osmosis water filter. The micro-computer can automatically monitor the TDS of the filtered water to maintain water quality, remind you to replace the pre-filters and membrane at the designated (customisable) times, and display the status of the water filter system (i.e. full, flush, production, source & power).

Working Pressure Gauge

The pressure gauge which is pre-installed at the RO membrane inlet gives users a clear indication of the working osmotic pressure ie. the pressure of the water going through the RO membrane. Working pressure is a simple feedback measure that can is incredibly useful to assist the troubleshooting process (if and when required).

Operation

The rating of this Reverse Osmosis system is 100GPD as per the membrane specifications meaning this system is capable of approx. 0.25 L/Min of water production (note: this will vary depending on water quality and a number of factors). The systems are designed to be run in a closed-loop configuration where the system runs off a float switch or timer. This type of configuration allows for system downtime and helps extend the lifespan of the pump as the system is intermittently producing water.

IMPORTANT: When the system is installed in an open-loop configuration and the pumps haven’t been allowed any downtime (i.e. 24/7 operation), you may expect to see a decrease in the lifespan of the pump. If you intend to use the system this way please contact us as we may have a better solution for your specific requirements.

Production Scenario for Closed-loop Configuration
Example: The system is run for up to 8 hrs a day with a 30 min cool-down period. In this configuration, the system will produce approx. 125L +/- per day. This is the recommended runtime scenario or extended pump lifespan, as specified by the manufacturer.

Production Scenario for Open-loop Configuration
Example: The system is run continuously without a cool-down period. In this configuration, the system will produce approx.  *375L +/- per day. You will also need to factor in the auto-backflush cycles for this unit every 30 min. *This is the maximum capacity of what this system can produce, however, this may also decrease pump lifespan.

*Note: The pump comes with a 90-day replacement guarantee/12 month pro-rata warranty per pump, from the date of invoice. If the pump fails within the first 90 days of operation, we will replace it. If it fails from 90-365 days, we will cover it on a pro-rata basis. The pumps, as well as the filters, are classed as consumable items.

Post-Filter Options

The post-filter is a very important part of reverse osmosis water treatment. The performance of RO membranes in terms of contaminant reduction is similar across the board, so it is in fact the post-membrane filter that differentiates various RO systems. Your choice of post-filter will depend on the application.

Reverse Osmosis on its own will generally produce mildly acidic water which is not ideal for straight drinking without further treatment. For applications where drinking water is required, select the Alkaline Post Filter option, which uses Calcite to buffer the pH to between 7pH and 8 pH.

However, when the water is required to have a TDS reading of 0, we use a DI Resin cartridge. DI resin will remove any remaining trace minerals or salts in the water leaving the water as pure H2O. This type of water is required for many applications such as in the Dental/Medical Industries, Aquariums, and any other applications that require "0 TDS" or distilled-quality water.

Filter Breakdown

Stage 1: 5 Micron Polypropylene Spun Sediment Filter - Replace every 6 months

Poly Spun filters are an economical option for water filtration. We use them in this system to protect the RO membrane and carbon pre-filter from clogging and damage caused by excessive sediment.

Stage 2: Granular Activated Carbon Filter - Replace every 6 months

Our Granular Activated Carbon is manufactured from coconut shell and features a high density, large micro-pore volume, and high surface area. It is commonly used for the purification of potable water, beverage manufacture, dialysis, aquarium water, and a variety of food-grade applications. In properly designed systems, will effectively remove chlorine, chloramines, tastes, odour, and more.

Stage 3: 5 Micron Coconut Carbon Block Filter - Replace every 6 months

The perfect carbon block filter is made from 100% Coconut Shell Carbon, which creates what many believe to be the sweetest-tasting water. The unique pore structure of this carbon is well suited for chemical absorption, including VOC’s, while reducing chlorine and chemicals that contribute to taste and odour.

Carbon filtration is the best form of filtration for chemical extraction due to a longer and more thorough contact time, which in turn provides an extremely comprehensive method of chemical removal. We HIGHLY recommend this method of filtration for chemical taste and odour extraction.

Stage 4: 100GPD Reverse Osmosis Membrane

The Reverse Osmosis Membrane is the workhorse of any RO system. It is constructed from a wrapped semi-permeable membrane material that uses pressure to separate impurities such as ions, metals, minerals, salts, and other large molecules from the water, carrying them to waste.

*Reverse Osmosis membranes do not have a set replacement schedule, due to the variables that can make the membrane filter life vary significantly. This is mostly due to incoming water quality, which differs from town to town, and state to state. Instead of relying on guesswork, the GT1-23LS RO system is fitted with a micro-computer that can detect the TDS of post-membrane filtered water, and will alarm when the membrane requires replacing. This system is set to 40 ppm TDS as a default, however, this can be easily modified based on your needs.

TDS meters measure the total dissolved solids in ppm in the water. To test your membrane, get a baseline reading out of your tap (unfiltered water) and then compare that to a reading directly off the membrane (disconnect the tube before it goes into the post filter cartridge). You can expect to get a difference of approx 90-99% between the readings which indicate that the membrane is functioning correctly. If this % is beginning to drop below 90% it suggests that the RO membrane requires replacement.

Stage 5: Post-Filter

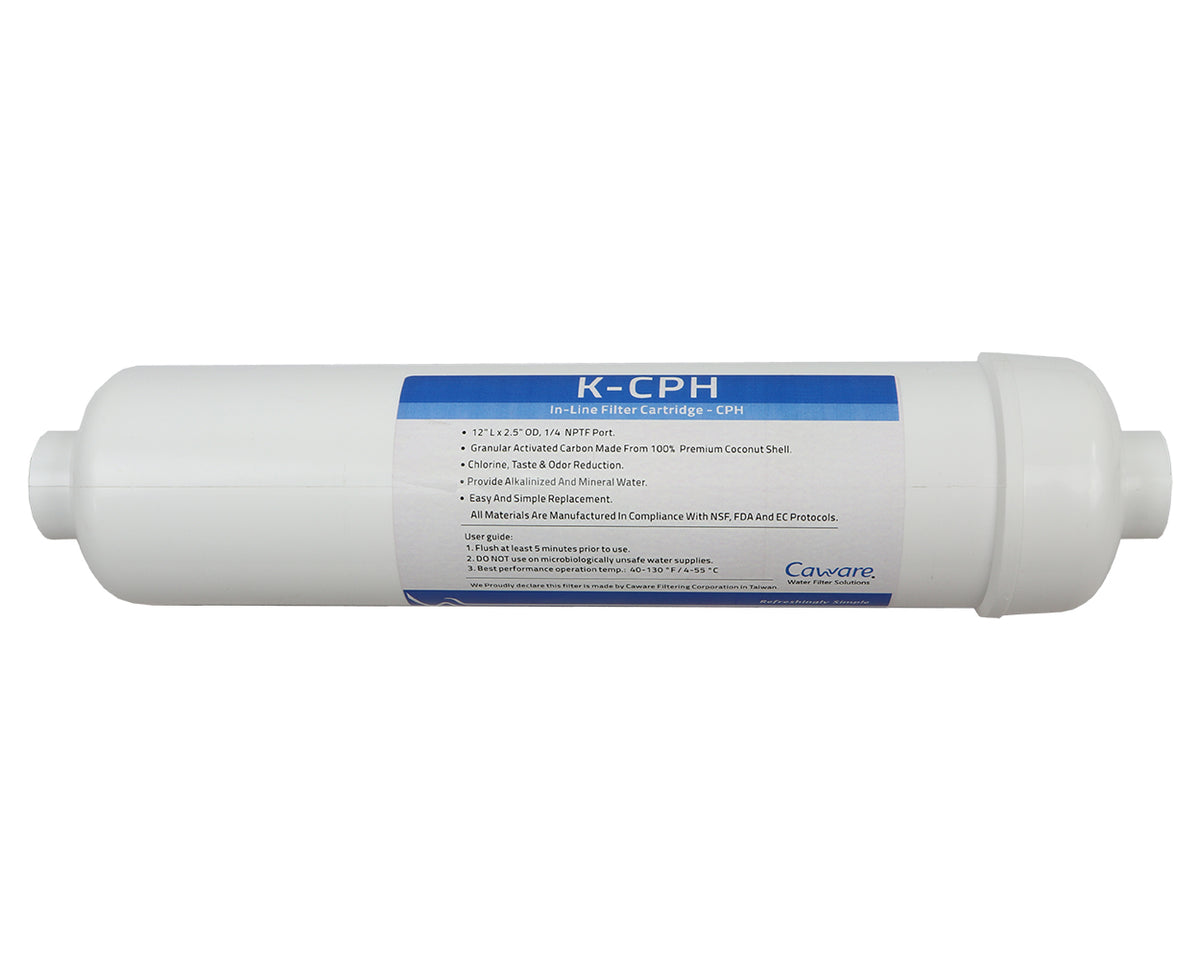

(Option 1) GAC + Calcite Alkalising Filter - Replace Every 6 - 12 Months Depending On Usage

When this system is used for drinking water applications we always recommend the use of a pH-neutral post filter. When the water comes out of the RO membrane, the water will have little mineral content causing the pH to drop well below 7 pH. Drinking water should be no lower than 6.8 pH.

When the alkaline filter is selected, there will be no stage 5 mounted on the top bracket, rather we will supply a separate 10" filter system to be connected for the final stage of filtration.

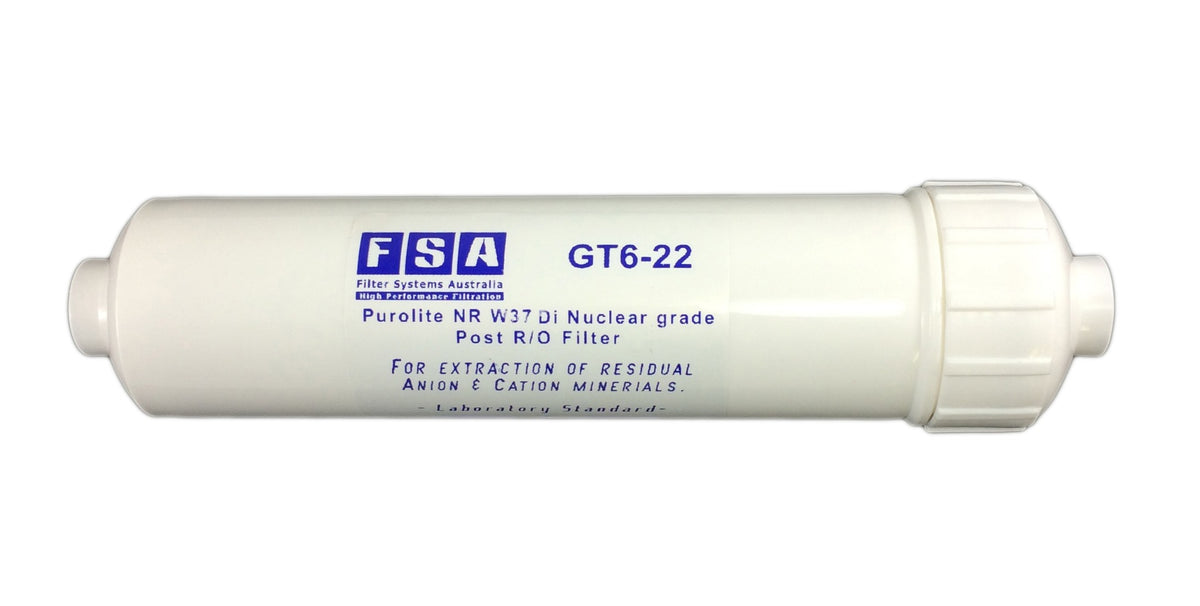

(Option 2) Deionising (DI) Resin Filter - Up to 12 Months*

The canister DI filter will replace the existing GAC inline filter. Due to the size of this filter housing and canister, it will need to be mounted separately from the RO unit. We will provide an inline tube joiner so you can join the RO system to the DI canister.

(Option 3) No Post-Filter

Storage Tanks

When required, we can design these systems to allow pressurised storage tanks. These tanks will provide you with a higher volume of water on-demand, allowing you to provide water to appliances quicker for longer periods of time. For example, a coffee shop may only require 100L water per day, but it is all in a 3 hour period. The use of a storage tank provides this upfront water capacity, while the system works to produce more water.

The storage tanks will only be able to produce water to the tap/machine as fast as the final filter cartridge allows. For example, a standard GAC filter will only run at 3-5L per minute and as previously outlined, a DI resin cartridge works better the slower it goes. This will need to be taken into account when comparing specifications and requirements from your appliance.

Tank Dimensions

6L Tank
Tank Height: 27cm
Tank Width: 20cm
Connection: Top Mount 1/4" Male (Allow 2" for valve)

8L Tank
Tank Height: 42cm
Tank Width: 23cm
Connection: Top Mount 1/4" Male (Allow 2" for valve)

12L Tank
Tank Height: 42cm
Tank Width: 29cm
Connection: Top Mount 1/4" Male (Allow 2" for valve)

38L Tank
Height of Tank: 58cm
Width of Tank: 40cm
Connection: Bottom - Horizontal 1" Female to 1/4" Reducer

76L Tank
Height of Tank: 78cm
Width of Tank: 40cm
Connection: Bottom - Horizontal 1" Female to 1/4" Reducer

System Dimensions

Depth: 25 cm
Width: 36 cm
Height: 46 cm
