Ultraviolet Sterilisation Water Sanitation System 180L/m Commercial UV (GT7-15A + GT7-50)

Commercial Grade Stainless Steel UV Reactor

High Flow 180L/Min - Suit Commercial Applications

2" BSPT Threads for simple installation

Includes Visual + Audible Lamp Failure Alarm

High Output 127W UV Lamp

UV Viewing Window & Port For UVT Monitor

Full Australian WaterMark Certification

This Water Filtration System is certified to WaterMark Standards AS/NZS 3497 . WaterMark is the standard that is required by law for a qualified plumber in Australia to install any item on municipal town water. All products used under this certification will give you peace of mind knowing that your water filter complies with Australian plumbing codes. Our WaterMark filtration systems are hand assembled here in Australia and are batch tested to ensure quality and workmanship for your filtration products.

Ultraviolet Sanitation

UV Water Sanitation is by far the most important filtration process when it comes to rain water treatment. Rain water harbours bacteria of all types but is some cases much more harmful bacteria may be present in the tank. E-Coli is a common bacterium in tank water and is due mostly to Frogs in and around your tanks/catchment. Ultraviolet sanitation works by breaking down the cell wall of a micro-organism allowing oxidation to occur which in turn prevents the bacteria from multiplying until it is finally eradicated. Ultraviolet filtration is a chemical free solution to water sanitation creating no by-products in the water.

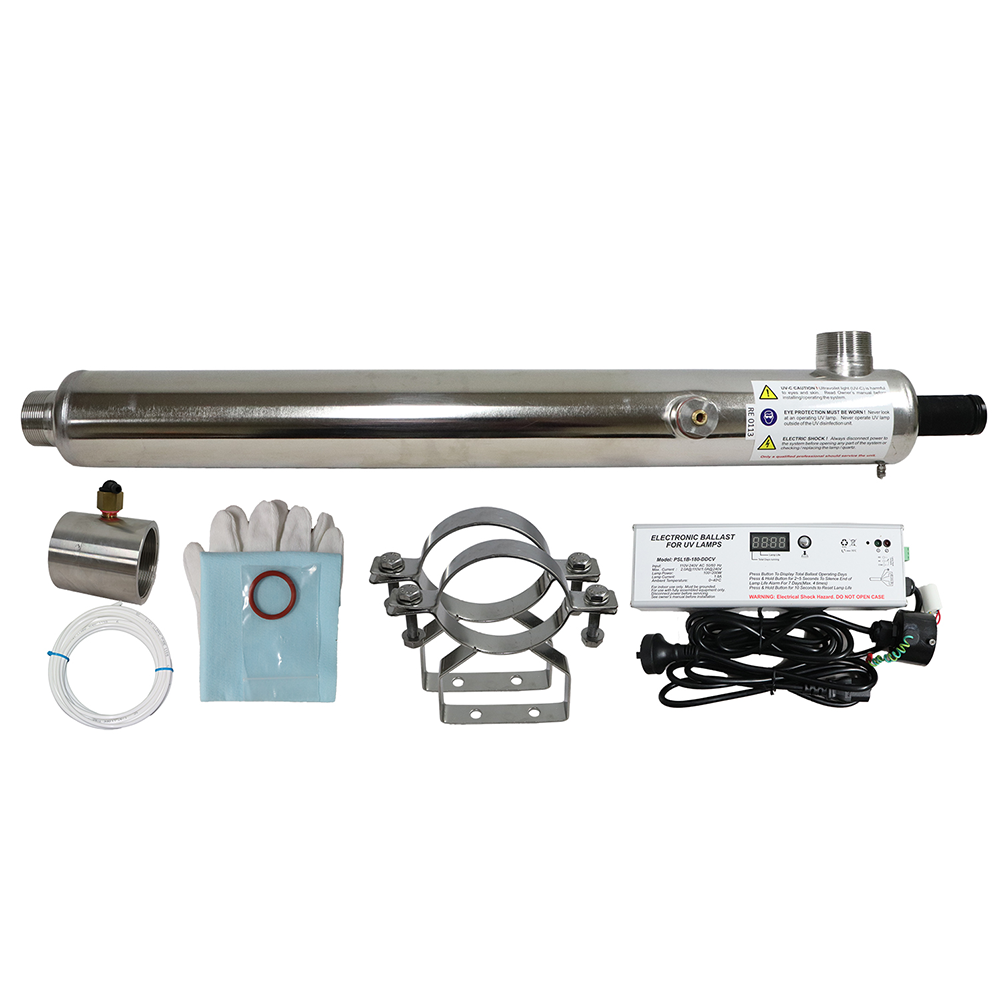

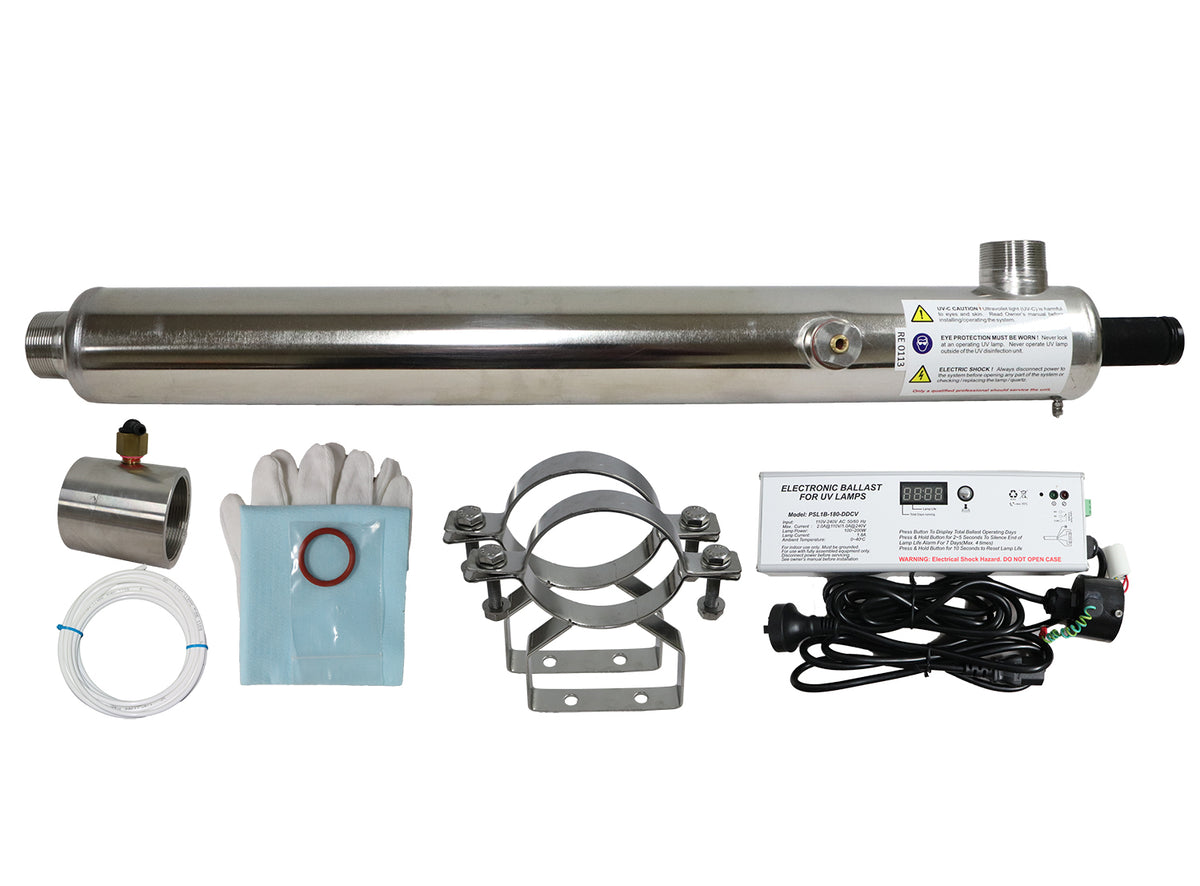

Kit Contains

• GT7-15A                WaterMark Commercial UV System 127W | 2” Ports
• Brackets                1 Pair of Stainless Mounting Clamps + Bolts
• GT7-15A-Lamp       127W T6 4 Pin Replacement Lamp
• GT7-15A-Thimble   900mm Quartz Thimble 28mm*OD
• GT7-15A-PS            PSL1B-180-DDCV Ballast With Earth Cable Suit C Series UV
• GT7-15A-OR           NSF/ANSI 42 Compliant O-Rings Suit 28mm*OD

Features

• Commercial Grade Electropolished 316 Stainless Steel Chamber
• Visual & Audible Lamp Failure Alarm
• 2” BSPT Threaded Male Connections
• Strong Stainless Steel Mounting Brackets – Surrounds Chamber
• High Intensity UV Lamps – Up to 176L/min @ 30mJ/cm² (UVT 94%)

Water Pre-Treatment Specifications

• Hardness              < 120 mg/L
• Turbidity              < 1.0 NTU
• Iron                      < 0.3 mg/L
• Manganese           < 0.05 mg/L
• Tannins                < 0.1 mg/L
•  Filtration             < 5uM Particulate Filtration
