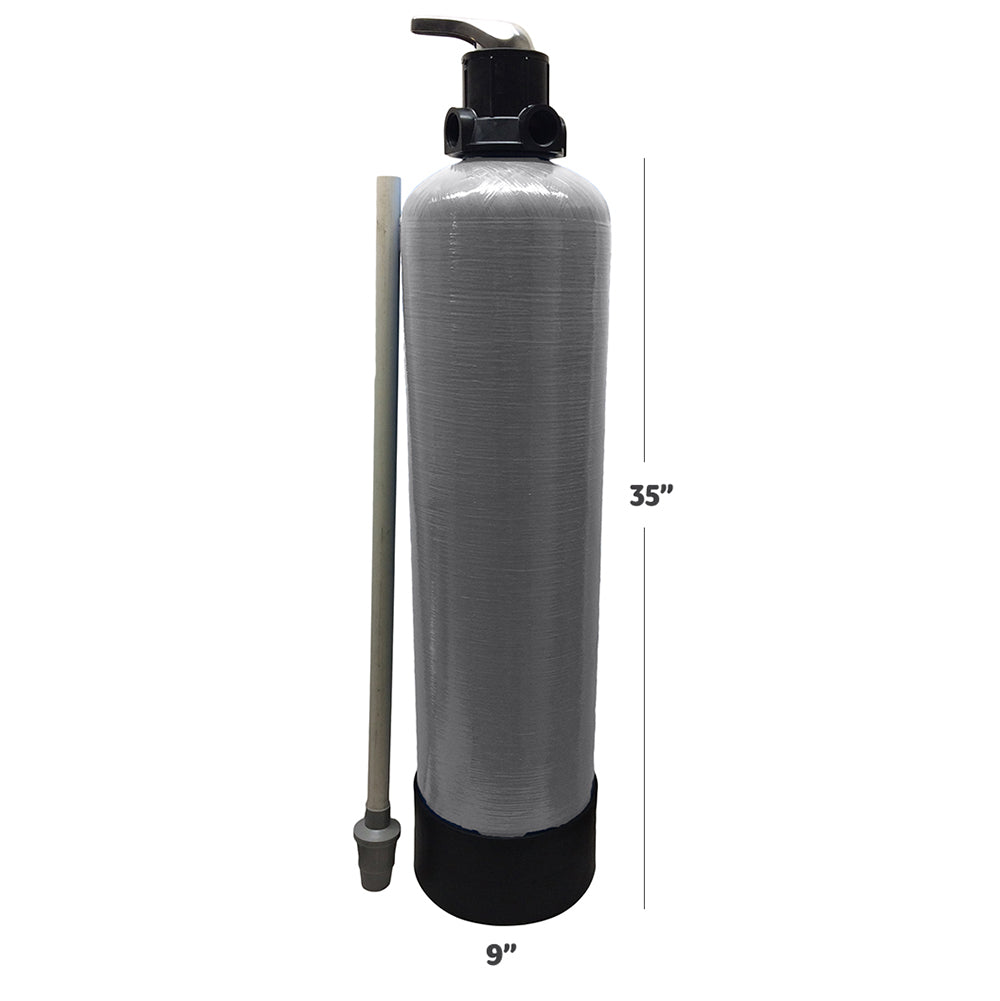

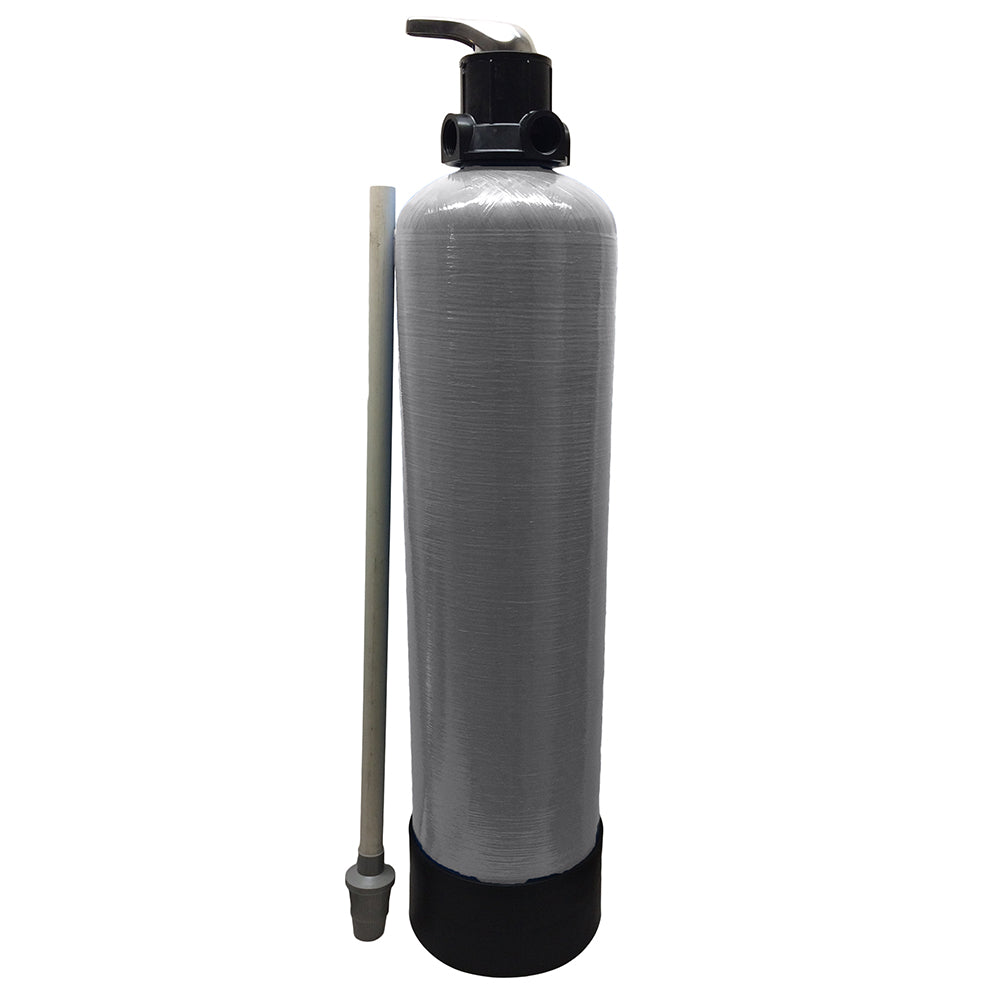

Media Vessel For Water Filtration 35" x 9" Complete System | Backwash Head (GT1-91)

Hi Quality Certified Media Vessel for water filtration.

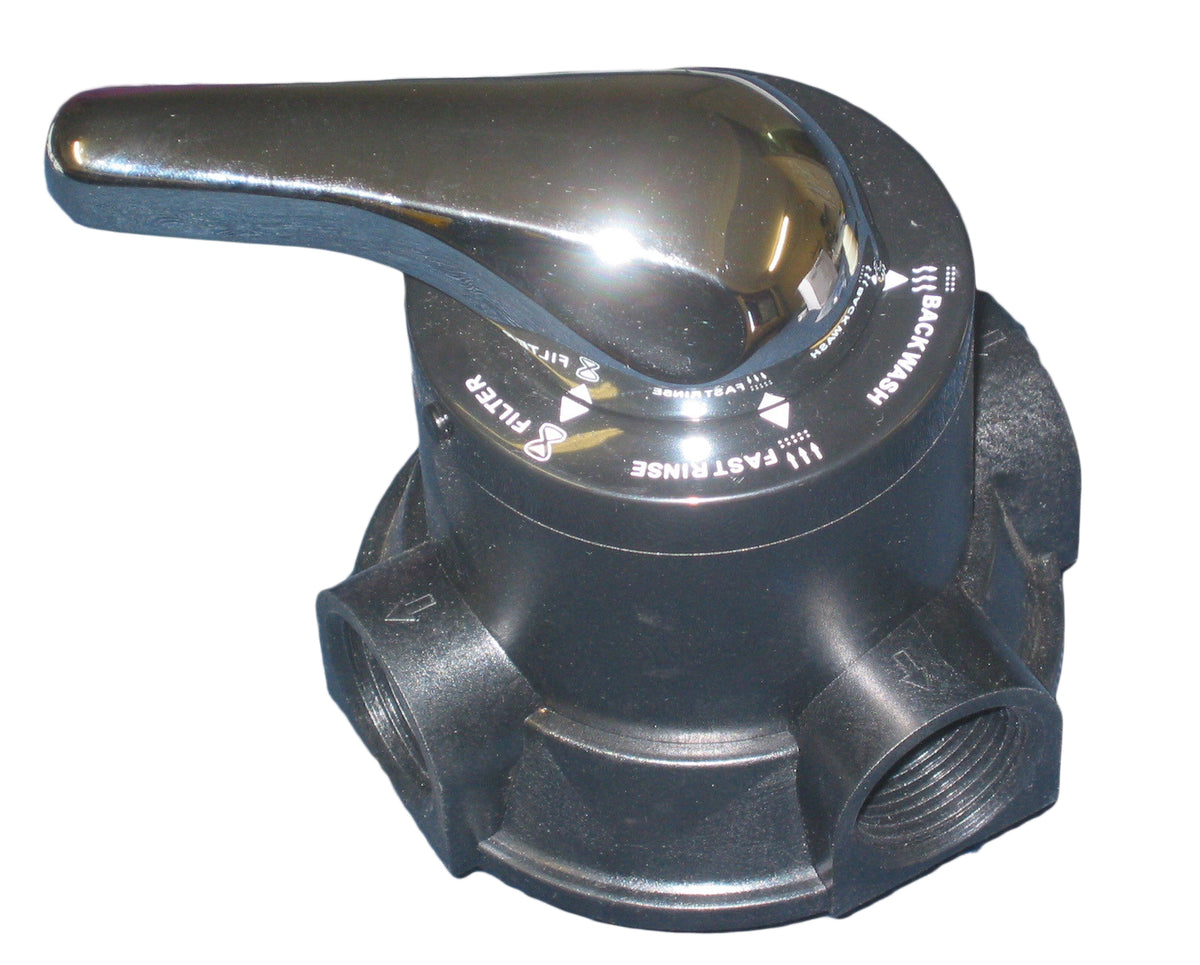

Supplied with Manual Multi Port valve for easy installation and maintenance.

Suitible for Filter media such as Carbon Or Filter Sand.

We recommend using #5 Filter gravel as the bottom layer to avoid blockages in the bottom screen


Please get in contact with us prior to purchase if you have any questions about using this vessel. We always like to discuss the use of water filtration before any money is spent to ensure that you get exactly what you need.

Specifications & Technical Data:

Max Pressure: 150 PSI (10.5 Bar)
Max Temperature: 50 C (122 F)
Min Temperature: 1 C (34 F)
Max Vacuum: 140mmHg (5.5" Hg) Negative Pressure
Do NOT exceed Specifications

Handling Instructions:

Vessel approved for water filtration use only. All other applications must be approved by the manufacturer.

Do not use for pneumatic or Hydro-pneumatic application.

Vessel must NOT be exposed to temperatures lower that -30 Celcius.


This Vessel complies with all requirements of P.E.D 97/23/EC Directive

This water pressure vessel is tested against the NSF/ANSI Standard 44 for Material and Structual Requirements Only.
Polyethylene Inner Shell
